TH-Marine Mini Jacker

För dig som vill kombinera en kort/låg akterspegel med L-riggad motor (20" rigg)! Godkänd upp till 35hk. 4" 10cm setback

"Clamp Style" Small Outboard Jack Plate

Cast Aluminum Bracket

Marine Grade Transom Block

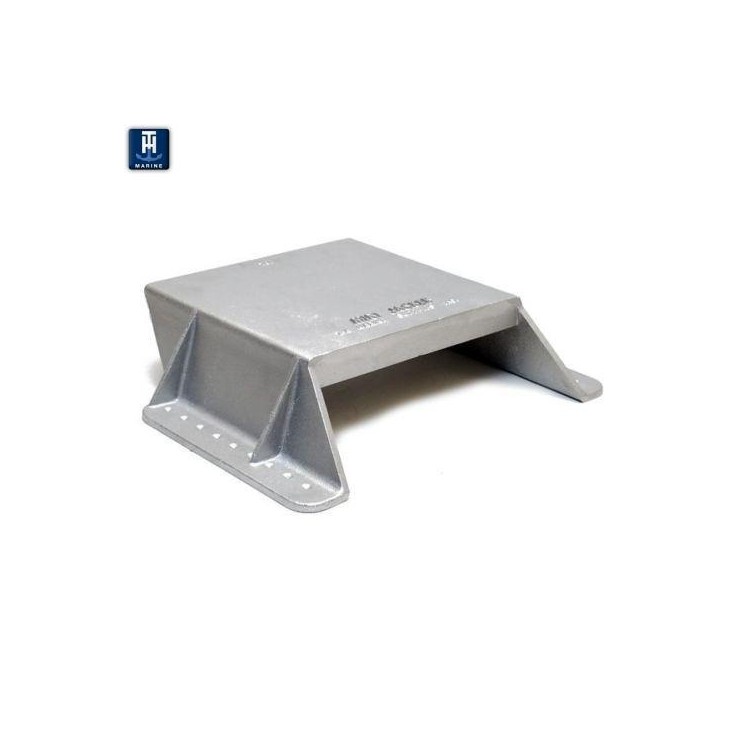

This cast aluminum offset type jack plate is designed for clamp-on mount outboard motors up to 35 HP. The Mini Jacker™ allows mounting of long shaft motors to shorter shaft transom boats. The mini-jacker™ stands off transom 4". The engine mounting surface is 11 1/2" wide x 10" high and features a vertical offset of 3". The overall width of transom mounting flanges is 17".

Super for skiffs, aluminum boats, and inflatables.

4" Setback

3" Vertical Offset

Max Weight: 150lbs

Max Horsepower: 35 HP

Width: 11 1/2"

Height: 10"

Overall Mounting Flange Width 17"
